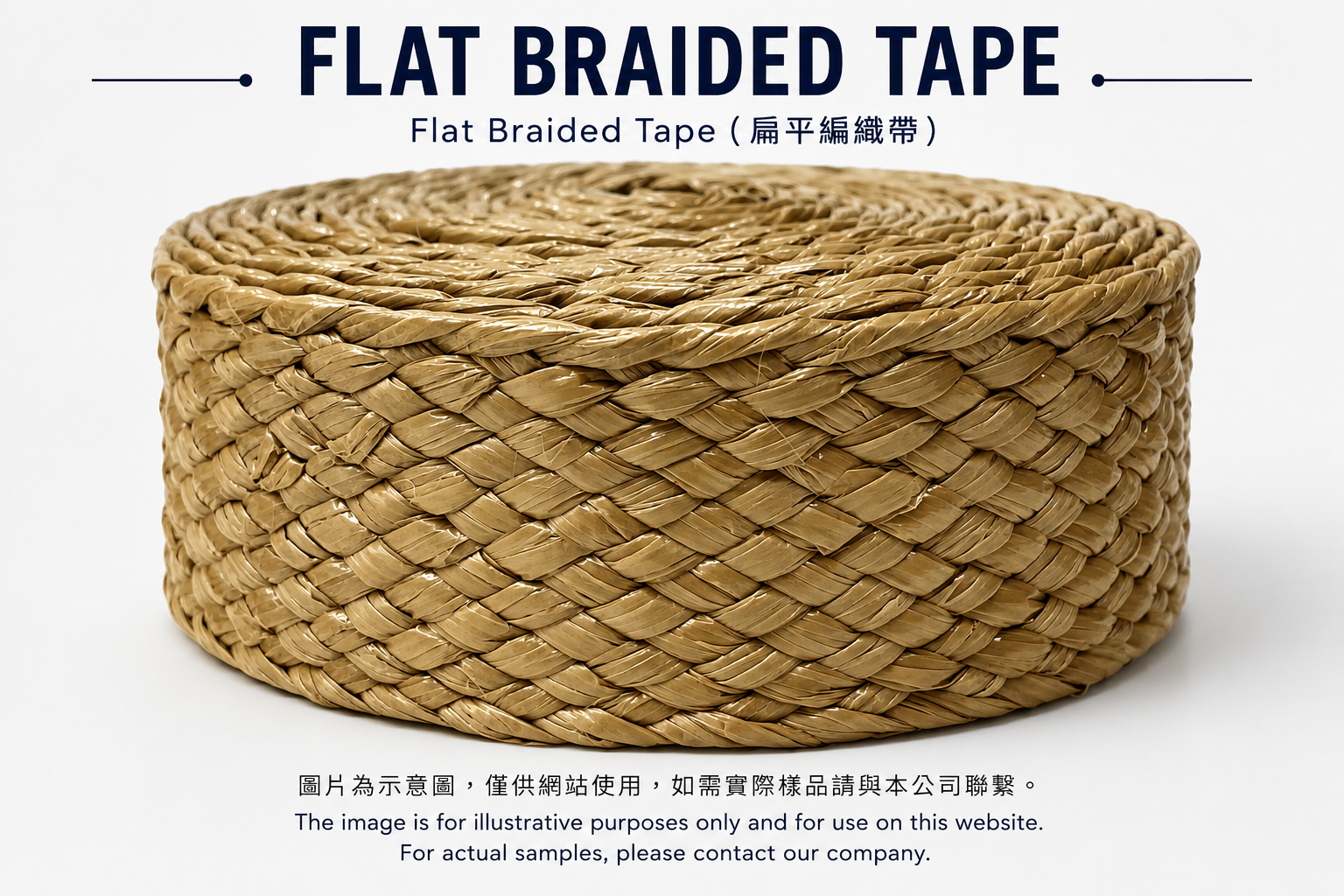

Product Name : Flat Braided Tape

Description
Flat braided tape is a narrow textile material formed by interlacing multiple yarns into a flat braided structure. Unlike conventional woven webbing, its surface appearance is created directly by the braid pattern, allowing distinctive textures, diagonal effects, chevron-style designs, and single- or multicolor combinations. It is suitable for apparel, footwear, bags, fashion accessories, decorative trims, packaging, and other narrow-fabric applications.

Available materials may include polyester, nylon or polyamide, polypropylene, cotton, and selected fiber combinations. Width, thickness, braid density, yarn arrangement, color layout, and hand feel can be adjusted according to the intended use. Standard flat braids may provide limited structural stretch through the braided construction even without elastic yarn. For applications requiring more defined stretch and recovery, elastic yarn can be incorporated to develop custom elastic flat braided tape.

Fu Jyi Lin supports OEM and ODM development from reference samples, product photos, dimensions, or target applications. We assist with material selection, braid structure, color combinations, hand feel, elastic requirements, sample development, converting, and packaging. Physical samples are recommended before mass production to confirm appearance, dimensions, texture, flexibility, and production specifications.



 Features

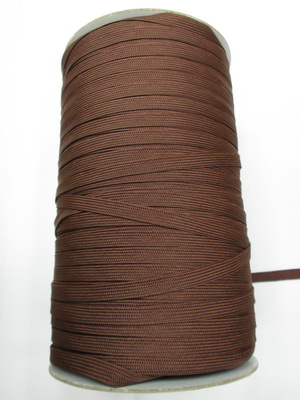

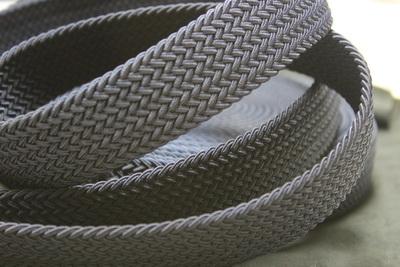

1 - Braided Webbing Tape

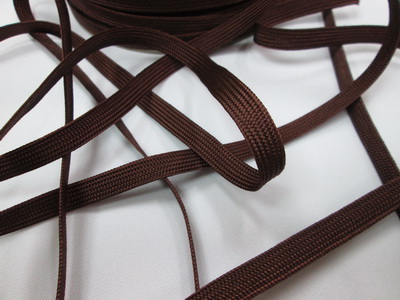

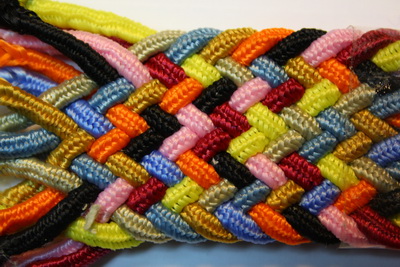

2 - Braided Webbing Tape

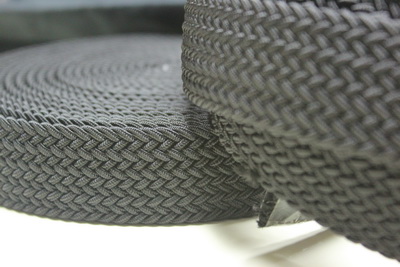

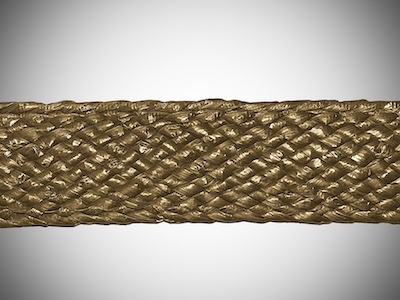

3 - Custom Braided Tape

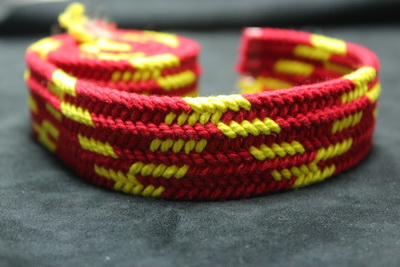

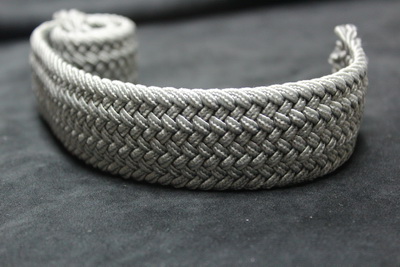

4 - Custom color Braided Webbing Tape

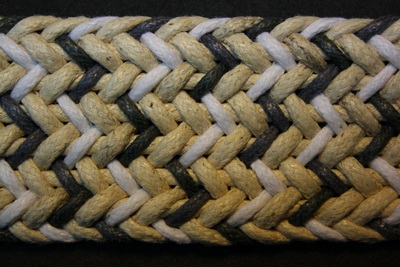

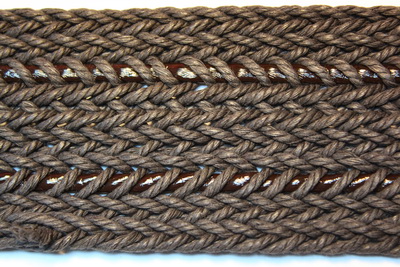

5 - Custom Braided Webbing Tape

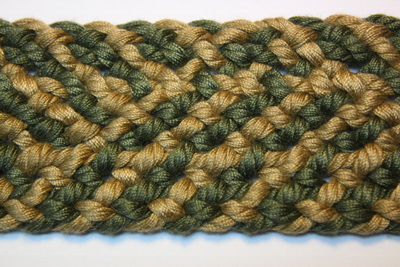

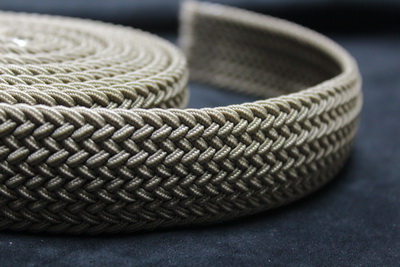

6 - Braided Webbing Tape

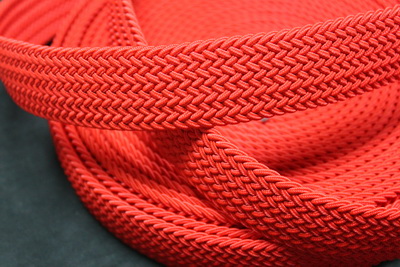

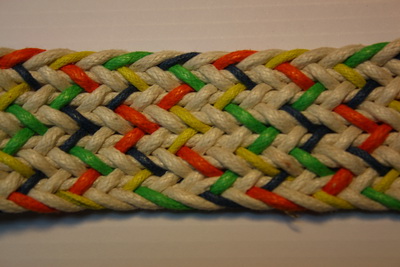

7 - Braided Webbing

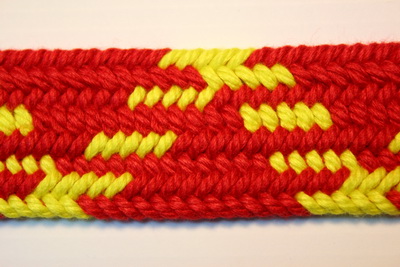

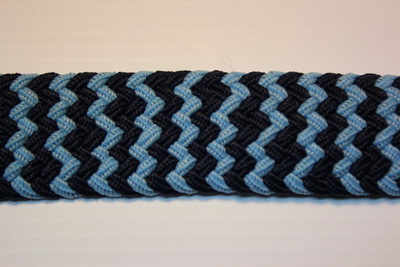

8 - Width Braided WebbingTape

9 - Braided Webbing Tape 32mm


10 - Braided Tape 35mm

11 - Braided Webbing

12 - Braided Webbing Tape


13 - Braided Webbing 10mm

14 - Flat Braided Webbing 10mm

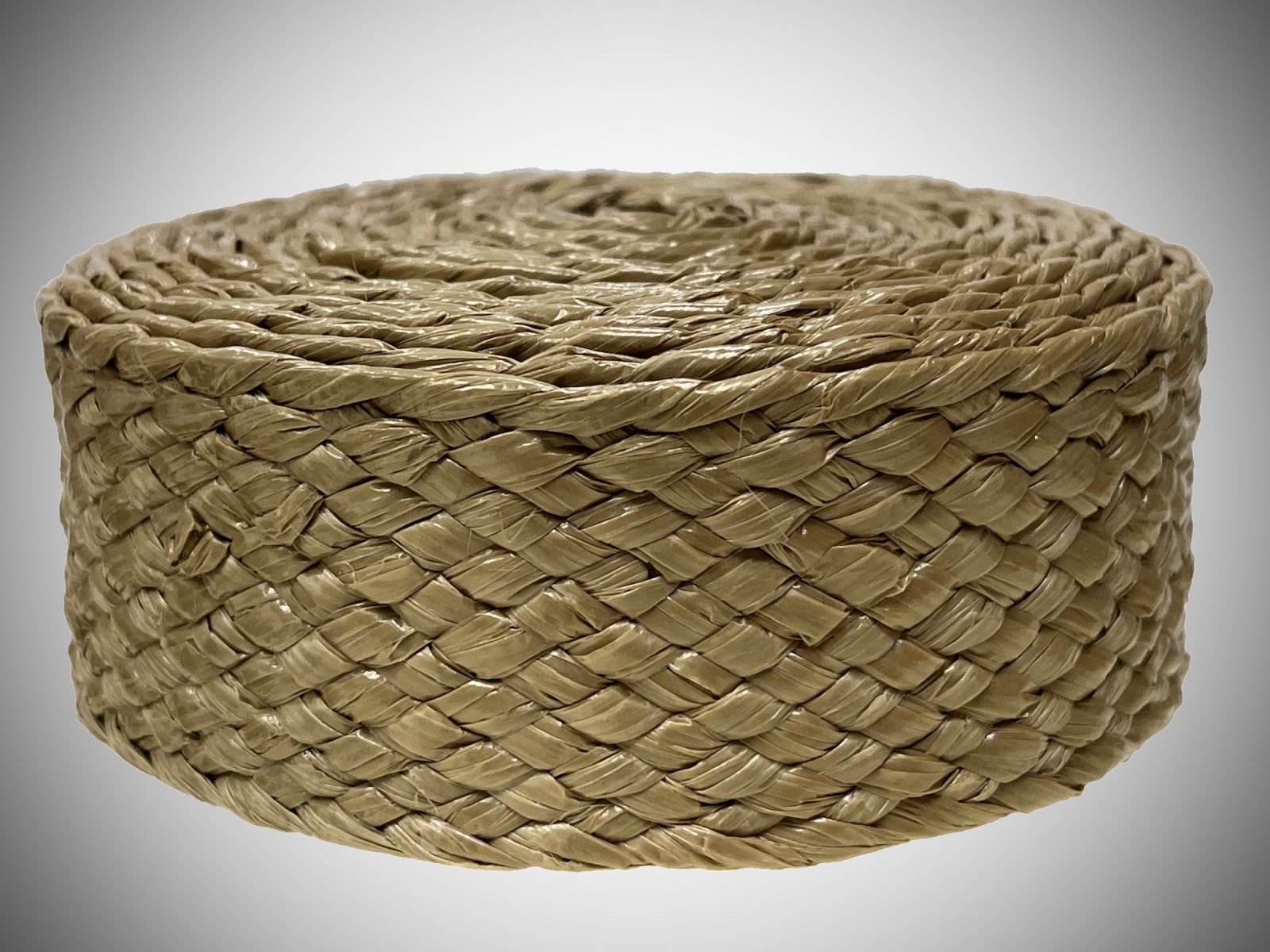

PP (Polypropylene)Braided Webbing



 Specification

**Product Name**
Flat Braided Tape / Flat Braid

**Material**
Common materials include **polyester, nylon / polyamide, polypropylene (PP), and cotton**. Recycled polyester, elastic yarn, or other fiber combinations may also be evaluated according to the required appearance, hand feel, flexibility, and end application. Material selection can affect surface texture, stretch behavior, abrasion performance, and suitability for further processing.

**Common Blend Ratios**
Common constructions include **100% polyester, 100% nylon / polyamide, 100% polypropylene, and 100% cotton**. For elastic constructions, rubber thread or elastic yarn may be incorporated according to the required stretch and recovery. The final fiber composition depends on the selected base yarn, elastic component, braid structure, and application requirements.

**Common Widths**
Common narrow widths include approximately **2, 3, 5, 6, 8, and 10 mm**. Wider flat braided constructions may also be developed, with custom widths extending to approximately **50 mm** depending on yarn size, braid structure, machine configuration, thickness, and end-use requirements.

**Common Thicknesses**
Flat braided tape does not have one universal thickness range. Thickness varies according to yarn material, yarn size, number of strands, braid density, product width, and required hand feel. For applications involving sewing, holes, buckles, hardware, or dimensional fitting, buyers are encouraged to provide a target thickness or physical reference sample.

**Braid Construction**
Multiple yarns are interlaced to form a flat braided structure. Braid density, strand arrangement, yarn placement, and overall width can be adjusted to create dense flat braids, multi-strand constructions, diagonal patterns, chevron-style effects, or other decorative braid structures. Construction affects the finished thickness, texture, flexibility, structural stretch, and appearance.

**Surface Texture / Braid Effects**
Available visual effects may include diagonal interlacing, chevron-style patterns, geometric braid textures, center-color arrangements, edge-color effects, and other decorative configurations. The final appearance is influenced by yarn size, strand count, color arrangement, braid tension, and construction. Physical samples are recommended for special patterns or detailed visual requirements.

**Colors / Custom Color Matching**
Single-color, two-color, and multicolor designs can be developed using available yarn colors, Pantone references, physical color swatches, or approved samples. Fiber type, yarn finish, surface gloss, and dye lot may influence the final appearance. Production color should therefore be confirmed against an approved physical sample rather than screen display alone.

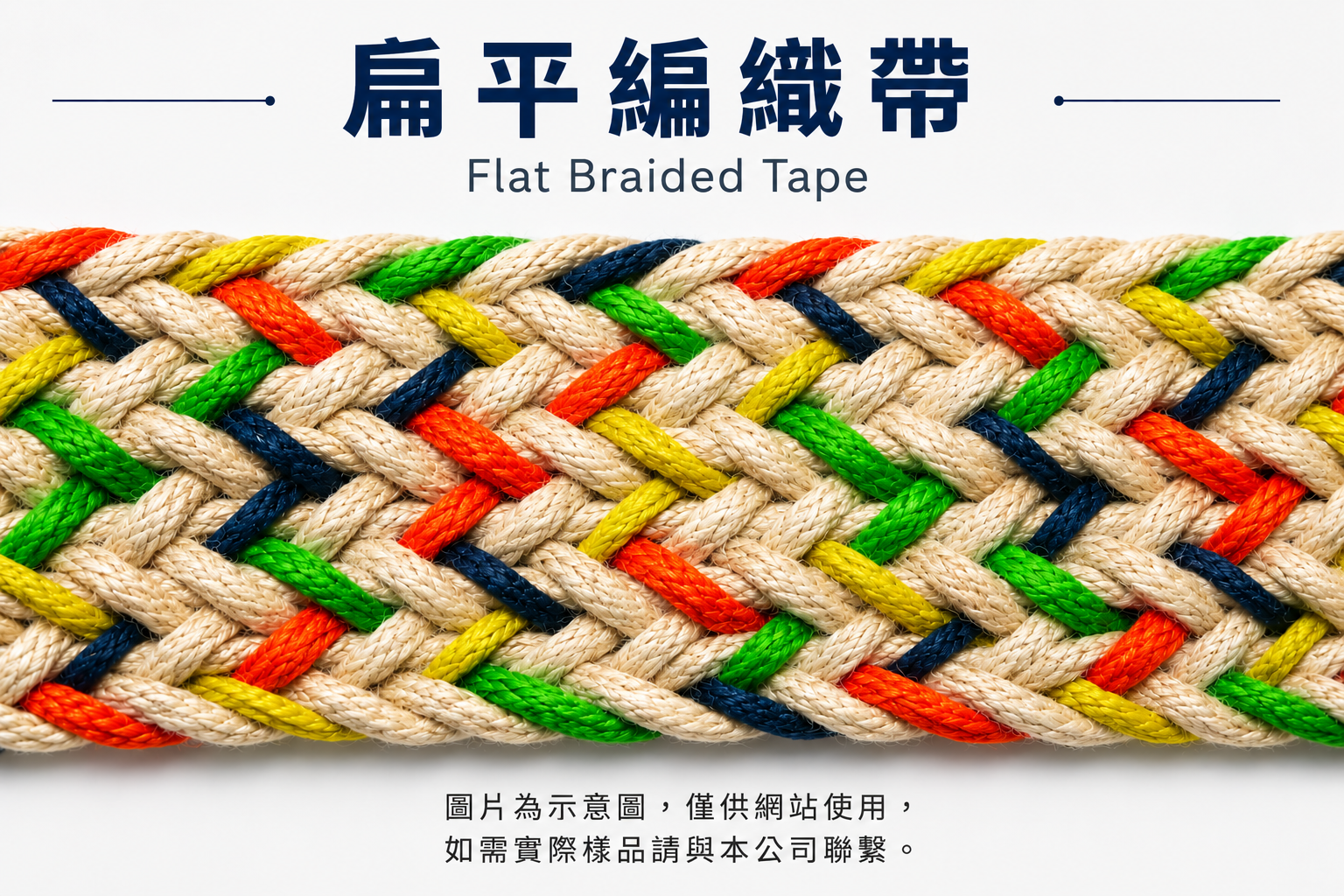

**Multi-Color Braiding**
Different yarn colors can be arranged to create stripes, alternating colors, chevron effects, center or edge color combinations, and other multicolor braid patterns. The number of colors and achievable pattern complexity depend on product width, strand count, yarn size, braid construction, and machine setup. Complex designs are recommended for sample development before mass production.

**Elastic Options**
Standard flat braided tape may provide a limited degree of **structural stretch and flexibility** through its interlaced braid construction, even when no rubber thread or elastic yarn is added. This construction-related stretch should not be considered equivalent to the controlled elongation and recovery of elastic webbing. For applications requiring more defined stretch and recovery, **rubber thread or elastic yarn can be incorporated into the braid to develop custom elastic flat braided tape**. Target elongation, recovery, thickness, and hand feel should be confirmed through physical sampling.

**Custom Dyeing MOQ**
Custom yarn colors may be developed according to fiber type, Pantone reference, physical color sample, and order quantity. Dyeing process, color tolerance, and minimum production quantity vary by material. Existing yarn colors and custom-dyed yarns may therefore have different MOQ and lead-time requirements.

**Basic Converting**
Available converting options may include cut-to-length processing, heat cutting, end finishing, folding, punching, sewing, riveting, buckle or hardware assembly, and other finished-product operations. The suitable cutting or edge-finishing method depends on the fiber type, thickness, braid construction, and final application.

**Functional Finishing**
Softening, stiffening, water-repellent treatment, soil-release treatment, antibacterial treatment, flame-retardant treatment, or other functional finishes may be evaluated according to project requirements. Finishing may influence color, hand feel, surface appearance, flexibility, and stretch behavior. Any specific performance claim should be supported by an agreed test method and actual test results.

**Applications**
Apparel and fashion accessories, footwear, bags and backpacks, hat bands, drawcords and lacing, decorative trims, pet products, home accessories, gift packaging, and other narrow textile applications. **Elastic flat braided tape** may also be developed for apparel, footwear, and accessory applications requiring defined stretch and recovery. Load-bearing, fall-protection, or other safety-critical applications require separate structural and testing evaluation.

**Standard Roll Packing**
Common reference packing is **100 m per roll**. Actual roll length may vary according to material, width, thickness, elasticity, braid construction, and production conditions.

**Custom Packaging**
Custom roll lengths, bulk spools, small rolls, cut-length sets, individual packing, labels, barcodes, inner bags, export cartons, and other specified packaging formats may be evaluated. Narrow constructions intended for continuous downstream processing may also be supplied in longer rolls where production conditions allow.

**MOQ**
MOQ is determined by material, yarn color, product width, strand count, braid construction, number of colors, elastic-yarn requirements, converting, and packaging. Existing yarn colors and custom-dyed colors may have different minimum quantities. Special multicolor patterns, elastic constructions, or new braid structures may also require different development and production minimums.

**OEM / ODM Services**
Fu Jyi Lin supports development from physical samples, product photos, dimensional specifications, color combinations, or target applications. Services may include material selection, width and thickness evaluation, braid-structure development, color arrangement, hand-feel adjustment, structural-stretch or elastic-performance evaluation, sample development, converting, packaging, and mass-production specification planning. Physical sample approval is recommended before production.

**Specification Notes
Width, thickness, braid texture, hand feel, and stretch behavior vary with yarn material, yarn size, strand arrangement, tension, and braid density. Standard flat braided tape may have limited structural stretch even without elastic yarn, but this should not be interpreted as specified elastic performance. Where controlled elongation and recovery are required, an elastic-yarn construction should be developed and confirmed by physical sampling. Multicolor, special-pattern, specific-hand-feel, or elastic constructions should be approved against an actual sample. Reasonable variations in color, dimensions, texture, and hand feel may occur between yarn, dye, and production lots. Specific dimensional, strength, or elastic-performance requirements should be agreed during sampling, including applicable tolerances, test methods, and acceptance criteria.



 Asks Description

Frequently Asked Questions (FAQ)

1. What information should I provide for an accurate quotation?

Please provide the required material, width, thickness, color combination, braid pattern, estimated order quantity, end application, and any converting or packaging requirements. If the product requires a specific level of stretch or recovery, please include the target performance or a reference sample. If the braid construction is not yet defined, Fu Jyi Lin can evaluate suitable options based on a physical sample, product photo, dimensions, or intended use.

2. What customization options are available?

Flat braided tape can be customized in material, width, thickness, braid density, strand arrangement, color combination, braid pattern, and hand feel. Standard flat braided tape may provide limited structural stretch and flexibility through its braided construction even without rubber thread or elastic yarn. This should not be considered equivalent to elastic webbing. For applications requiring more defined elongation and recovery, rubber thread or elastic yarn can be incorporated to develop custom elastic flat braided tape.

3. Is sample development recommended before mass production?

Yes. Physical sampling is recommended, especially for multicolor braids, special braid patterns, new materials, specific hand-feel requirements, or elastic constructions. The finished width, thickness, texture, color proportion, flexibility, and stretch behavior can vary with yarn size, strand arrangement, braid density, and tension. For elastic flat braided tape, sampling is particularly important to confirm elongation, recovery, hand feel, and dimensional stability before mass production.

4. How are MOQ and lead time determined?

MOQ and lead time depend on the material, yarn color, product width, strand count, braid complexity, number of colors, custom dyeing, elastic-yarn requirements, converting, and packaging. Existing yarn colors and simpler braid structures can generally be arranged more efficiently. Special color combinations, complex multicolor braids, elastic constructions, or additional finishing may require different machine setup, material preparation, and sample development. Final MOQ and lead time are confirmed after specifications are reviewed.

5. How can Fu Jyi Lin support my OEM project?

Fu Jyi Lin supports OEM and ODM development from physical samples, product photos, dimensional specifications, or target applications. We can assist with material selection, braid construction, color arrangement, hand-feel adjustment, structural-stretch or elastic-performance requirements, sample development, converting, and packaging. For projects requiring elastic performance, target elongation and recovery can be incorporated into the sample-development process so that the approved sample can serve as the reference for mass-production specifications.
