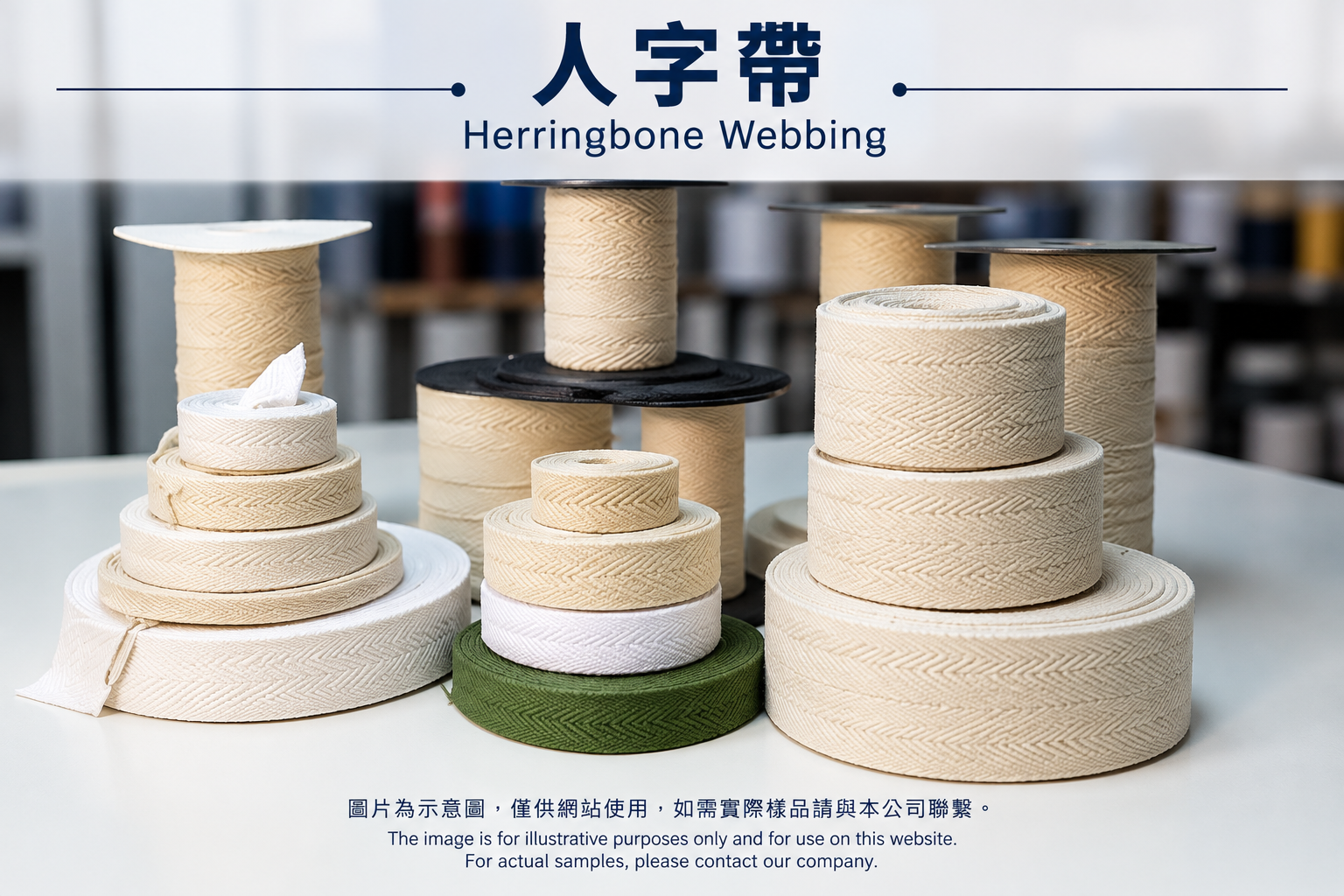

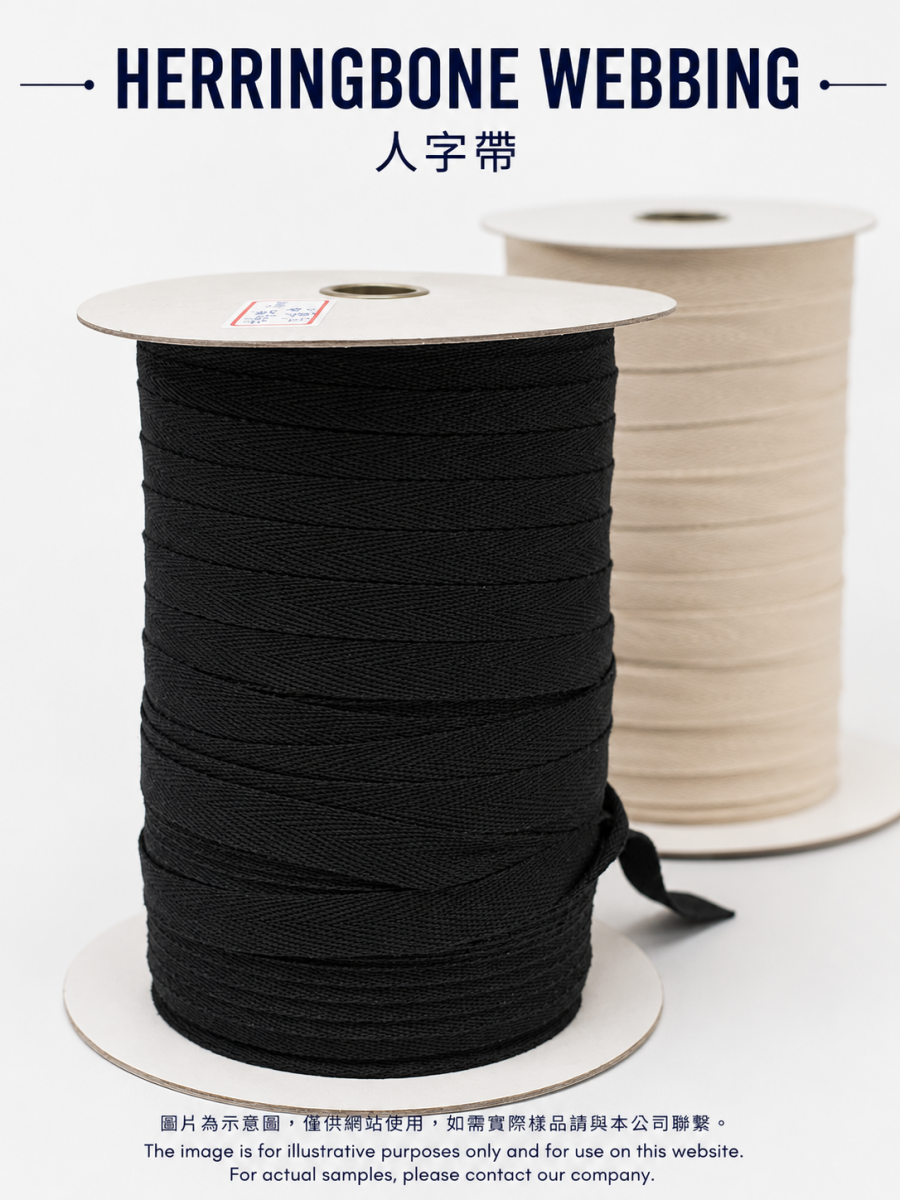

Product Name : Herringbone Webbing & Tape

Description
Herringbone webbing is a woven narrow fabric characterized by a repeated V-shaped or zigzag pattern created through a reversed twill structure. The distinctive surface texture provides both visual interest and practical versatility, making it suitable for apparel, footwear, bags, fashion accessories, decorative trims, packaging, home-textile applications, and other narrow-fabric products.

Available materials may include cotton, polyester, nylon or polyamide, and selected blends. Width, thickness, weave density, yarn size, surface texture, hand feel, and color can be adjusted according to the intended application. The herringbone pattern itself can vary in scale and appearance depending on yarn configuration, weave density, and color arrangement. Solid colors, two-tone effects, custom-dyed colors, and selected multicolor constructions may also be developed to match product or brand requirements.

Fu Jyi Lin supports OEM and ODM development through material selection, dimensional review, herringbone-pattern evaluation, color matching, sample development, converting, and packaging coordination. Buyers may provide a physical sample, product photo, target dimensions, color reference, or end-use requirements to begin development. Physical sampling is recommended before mass production to confirm texture, dimensions, hand feel, color, and overall appearance.



 Features

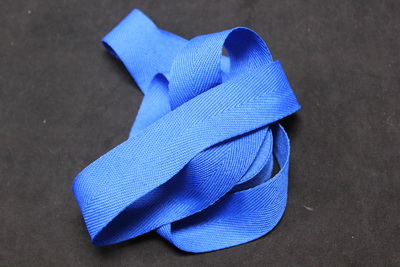

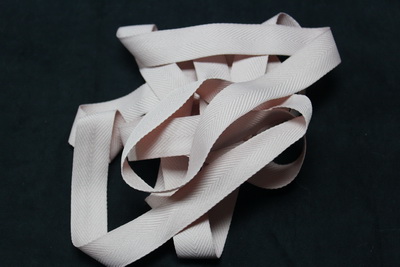

1 - Herringbone webbing

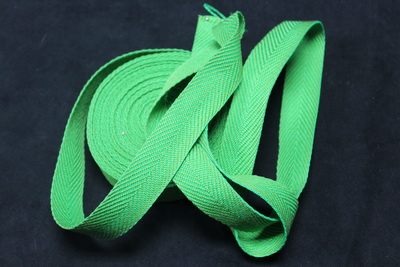

2 - Herringbone webbing

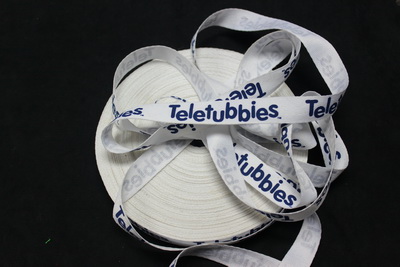

3 - Herringbone webbing

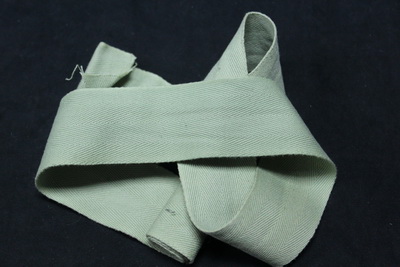

4 - Herringbone webbing

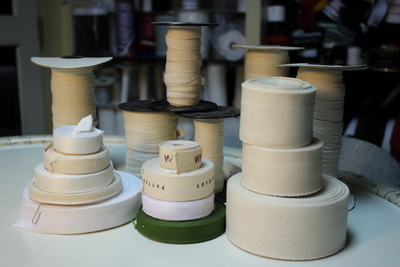

5 - Herringbone webbing

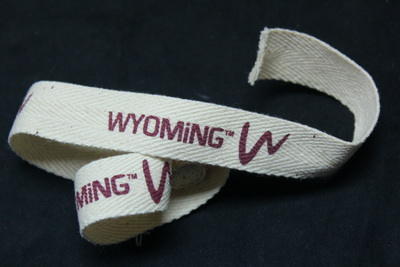

6 - Herringbone webbing

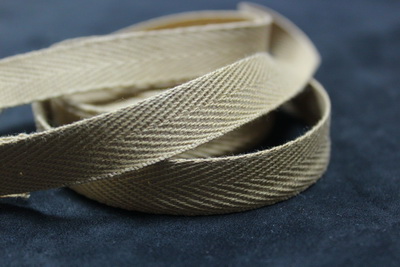

7 - Herringbone webbing

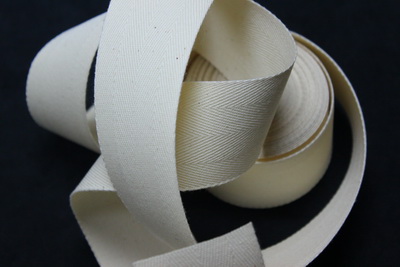

8 -Herringbone webbing



 Specification

**Product Name**
Herringbone Webbing / Herringbone Tape

**Material
Available materials include **cotton, polyester, nylon / polyamide, recycled polyester (rPET), poly-cotton, and selected blends**. Material selection should be based on the required appearance, hand feel, flexibility, strength, finishing requirements, and end application.

**Common Blend Ratios**
Common constructions include **100% cotton, 100% polyester, 100% nylon / polyamide, and 100% recycled polyester**. Poly-cotton and other blended constructions may be developed according to project requirements. Exact fiber composition should be confirmed according to the required appearance, hand feel, performance, and end use.

**Common Widths**
Herringbone Tape:
Common widths include **10, 15, 20, 25, and 30 mm**, typically selected for apparel trims, binding, ties, footwear details, and decorative applications.

Herringbone Webbing:
Common widths include **20, 25, 30, 38, and 50 mm**, typically selected for bags, handles, straps, accessories, and applications requiring a more substantial construction.

Other widths may be developed according to material, yarn size, weave structure, thickness, and end-use requirements.

**Common Thicknesses**
Herringbone Tape:
Approximately **0.5–1.0 mm**, depending on material, yarn size, weave density, and required hand feel.

Herringbone Webbing:
Approximately **1.0–2.0 mm** for general-purpose constructions. Heavier or specialized structures may be developed according to project requirements.

Thickness varies according to material, yarn size, weave density, width, and intended application. A physical reference sample or target thickness is recommended where dimensional fit, sewing, hardware, or assembly requirements are important.

**Herringbone Structure / Surface Pattern**
The characteristic herringbone appearance is created through a **reversed or broken twill structure**, forming a repeated V-shaped or zigzag pattern. Pattern scale, surface definition, texture, and hand feel vary according to material, yarn size, weave density, width, and construction. Fine, compact, or more pronounced herringbone effects may be developed according to the required appearance and application. Physical sampling is recommended for projects requiring a specific texture or pattern definition.

**Colors / Custom Color Matching**
Standard base colors include **Unbleached, White, and Black**. Custom-dyed colors can be developed according to a **Pantone reference, physical color swatch, or approved sample**. Fiber type, yarn construction, surface texture, and dye lot may influence the final appearance. Production color should therefore be confirmed against an approved physical sample.

**Custom Dyeing MOQ**
Custom dyeing MOQ depends on the material, width, color, dyeing process, and required quantity. Standard colors and custom-dyed colors may have different minimum production requirements. Pantone references or physical color samples are recommended for custom color development. MOQ, sampling conditions, and lead time should be confirmed before production.

**Basic Converting**
Available converting options may include **cut-to-length processing, heat cutting where suitable, ultrasonic cutting, folding, punching, sewing, riveting, buckle or hardware assembly, and other finished-product operations**. The appropriate converting method depends on fiber type, width, thickness, edge condition, and final product construction.

**Functional Finishing**
Softening, stiffening, water-repellent treatment, soil-release treatment, antibacterial treatment, flame-retardant treatment, or other functional finishes may be evaluated according to project requirements. Finishing may affect color, hand feel, flexibility, and surface appearance. Any specific functional or performance claim should be verified using an agreed test method and actual test results.

**Applications**
Herringbone Tape:
Apparel trims, garment binding, ties, drawstrings, footwear details, decorative trims, craft products, home-textile accessories, and gift or packaging applications.

Herringbone Webbing:
Bags and backpacks, handles, shoulder straps, fashion accessories, footwear components, pet-product components, general-purpose straps, and other applications requiring a more substantial narrow-fabric construction.

Applications requiring specified load-bearing, safety, or other critical performance should be separately evaluated according to the required construction, strength, and testing criteria.

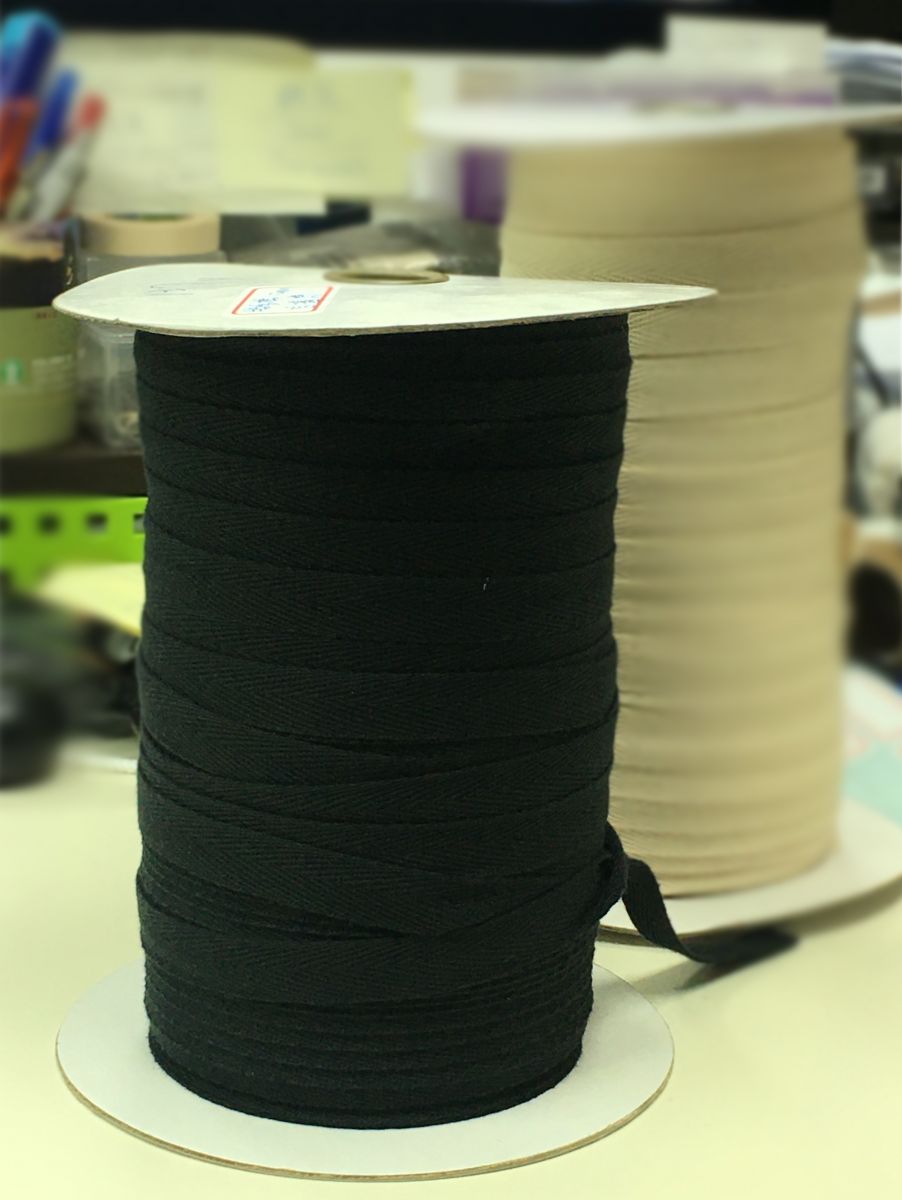

**Standard Roll Packing**
Common reference packing is **50 m or 100 m per roll**. Actual roll length may vary according to material, width, thickness, production conditions, and joint requirements.

**Custom Packaging**
Custom roll lengths, small rolls, cut-length sets, individual packing, labels, barcodes, inner bags, export cartons, retail packaging, and other specified packaging formats may be evaluated according to purchasing requirements. Special packing arrangements may affect MOQ, unit cost, and lead time.

**MOQ**
MOQ is determined by the material, width, thickness, color, herringbone construction, custom dyeing requirements, converting, and packaging. Standard colors and existing constructions may have different minimum quantities from custom-dyed or newly developed specifications. Final MOQ is confirmed after the required specifications and sampling conditions are reviewed.

**OEM / ODM Services**
Fu Jyi Lin supports development from **physical samples, product photos, dimensional specifications, color references, or target applications**. Services may include material selection, width and thickness evaluation, herringbone-pattern development, color matching, hand-feel adjustment, sample development, converting, packaging, and mass-production specification planning. Physical sample approval is recommended before production.

**Specification Notes**
Herringbone Tape and Herringbone Webbing may overlap in naming, so the final product should be defined by its actual material, width, thickness, construction, and intended use. Pattern definition, texture, and hand feel vary according to yarn and weave conditions. Custom colors, special textures, or dimensional requirements should be confirmed through physical sampling. Reasonable color, dimensional, and surface variations may occur between production lots. Any specific strength, abrasion, colorfastness, or other performance requirement should be agreed during sampling and verified using defined test methods and acceptance criteria.



 Asks Description

Frequently Asked Questions (FAQ)

1. What information should I provide for an accurate quotation?

Please provide the required material, width, target thickness, color, order quantity, end application, and any converting or packaging requirements. A physical sample, product photo, or color reference is helpful when available. If you are unsure whether Herringbone Tape or Herringbone Webbing is more suitable, Fu Jyi Lin can evaluate the appropriate construction based on the intended use, hand feel, dimensions, and assembly requirements.

2. What customization options are available?

Herringbone Tape and Herringbone Webbing can be customized in material, width, thickness, herringbone pattern definition, weave density, hand feel, color, and finishing. Standard colors include Unbleached, White, and Black, with custom dyeing available by Pantone reference or physical sample. Herringbone Tape is generally developed in lighter, thinner constructions, while Herringbone Webbing can be produced with a more substantial structure for straps, handles, bags, and accessory applications.

3. Is sample development recommended before mass production?

Yes. Physical sampling is recommended for custom colors, special herringbone patterns, specified thicknesses, hand-feel requirements, or products that must fit sewing, buckles, or hardware. The same herringbone design can appear differently depending on material, yarn size, weave density, width, and color. A physical sample allows buyers to confirm pattern definition, dimensions, surface texture, hand feel, and color before approving the specification for mass production.

4. How are MOQ and lead time determined?

MOQ and lead time depend on material, width, thickness, color, construction, dyeing, converting, and packaging. **Herringbone Tape**, with lighter and thinner constructions, can generally be arranged more efficiently when standard widths and existing colors are used. **Herringbone Webbing** may require additional production time because of its thicker construction, higher yarn consumption, and different machine settings. Custom colors, special thicknesses, new constructions, or additional processing may increase both MOQ and lead time for either type.

5. How can Fu Jyi Lin support my OEM project?

Fu Jyi Lin supports OEM and ODM development from physical samples, product photos, dimensional specifications, color references, or target applications. We can assist with selecting Herringbone Tape or Webbing, material choice, width and thickness, herringbone pattern, hand feel, color matching, sampling, converting, and packaging. Buyers may begin with a target product rather than a complete technical specification, and the approved sample can be used to establish the final mass-production requirements.
